FITTINGS

Introducing FITTINGS products.

FITTINGS

FITTINGS 제품을 소개합니다.

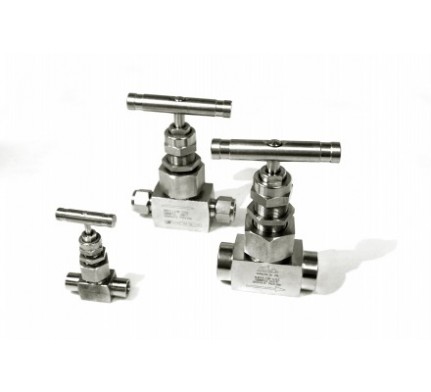

  • SNV Series 5,000psig (345 Bar) Intergral Bonnet Forged Needle Valve

    SNV Series 5,000psig (345 Bar) Intergral Bonnet Forged Needle Valve

    • SIZE :
    • I-LOK 1/8 & Bite type to 1” in OD/ 3mm to
      25mm, Male Female Thread ( NPT, PT, PF )
    • APPLICATIONS :
    • Instrument isolation,
      General purpose gas, Test valve
    • Material / Features :
    • 316L, Brass, Steel / 3-Way and
      angle patterns, Panel Mount Type, Test Cock Type
    • SPECIFICATIONS :
    • Maximum Working Pressure @ 100℉(38℃) :
      5000psi ( 345bar )
      Working Temperature Range :
      -65˚F to 450˚F ( -54˚C to 232˚C )
    Read More >

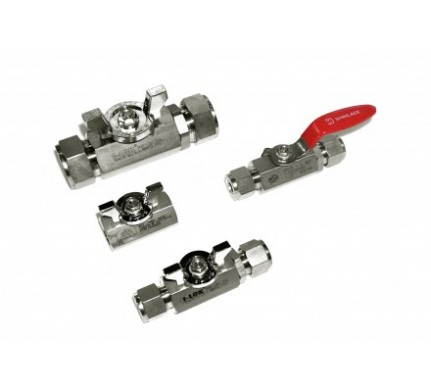

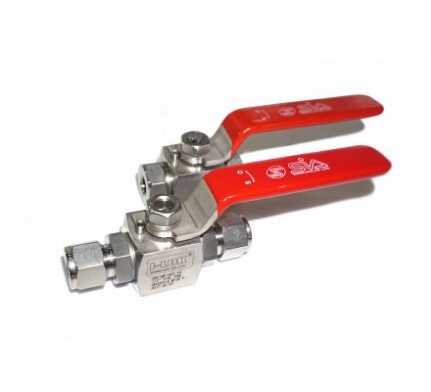

  • SMPV Series 3,000 PSI Square Ball Valve

    SMPV Series 3,000 PSI Square Ball Valve

    • SIZE :
    • I-LOK 1/8 to 1” in OD/ 3mm to 25mm,
      Male Female Thread ( NPT, PT, PF )
    • APPLICATIONS :
    • Instrumentation, Fluid Control,
      Control Sampling system
    • MATERIAL :
    • 316L, Brass / 2 way shut off and 3 way
      switching 2,3 way and angle pattern
    • SPECIFICATIONS :
    • Maximum Working Pressure @ 100℉(38℃) :
      3000 psig ( 210 bar )
      Working Temperature Range :
      50˚F to 150˚F ( 10˚C to 66˚C )
    Read More >

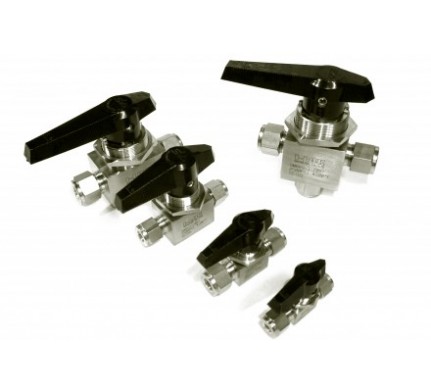

  • SHBV Series 1,000 PSI Hexagonal Ball Valve

    SHBV Series 1,000 PSI Hexagonal Ball Valve

    • SIZE :
    • I-LOK 1/8 & Bite type to 1” in OD/
      3mm to 25mm, Male Female Thread ( NPT, PT, PF )
    • APPLICATIONS :
    • Instrumentation , Fluid
      Control, Compressed Air
    • Material / Features :
    • 316L, Brass / Lever,
      Butterfly, Bar Handles
    • SPECIFICATIONS :
    • Maximum Working Pressure :
      1000psi( 69bar ) @70˚F ( 21˚C )
      Working Temperature Range :
      0˚F to 450˚F ( -17˚C to 232˚C )
    Read More >

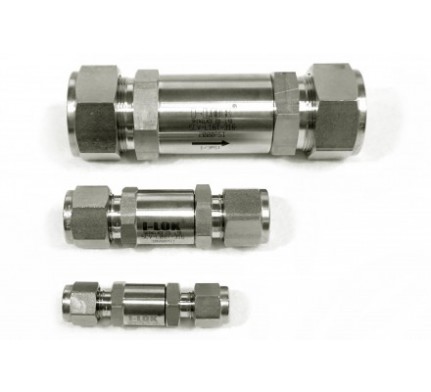

  • SCV Series Check Valves

    SCV Series Check Valves

    • SIZE :
    • I-LOK 1/8 & Bite type to 1” in OD/ 3mm
      to 25mm, Male Female Thread ( NPT, PT, PF )
    • APPLICATIONS :
    • Instrument Lines, Sampling System
    • Material / Features :
    • 316L, Brass
    • SPECIFICATIONS :
    • Maximum Working Pressure :
      3000psi ( 210 barg )
      Working Temperature Range :
      -10℉ ( -23℃ ) to 375℉ ( 191℃ )
      Opening Pressure Range :
      1/3 psi ( 0.02 bar ) to 100 psi ( 7 bar )
    Read More >

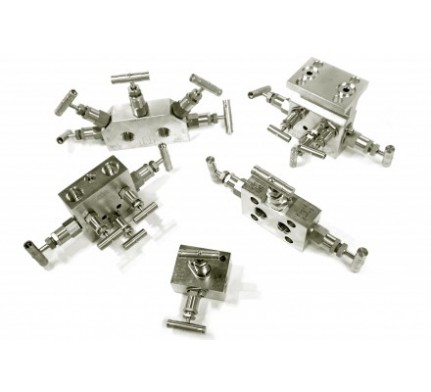

  • SMV Series Manifold Valves

    SMV Series Manifold Valves

    • SIZE :
    • Male Female Thread 1/4” ~ 1”( NPT, PT, PF )
    • APPLICATIONS :
    • Pressure & Differential
      Pressure Instrumentation
    • Material / Features :
    • 316L / Remote mounting
      type, Direct mounting type with flanged
      1valves, 2valves, 3valves, 5valves instrument
      manifolds, Special Connection Avaiable
    • SPECIFICATIONS :
    • Maximum Working Pressure @ 100℉(38℃) :
      6000psi( 414bar )
      Working Temperature Range :
      -65˚F to 450˚F (-54˚C to 232˚C ) / PTFE packing
      Up to 1200˚F(649˚C) / Graphite packing
    Read More >

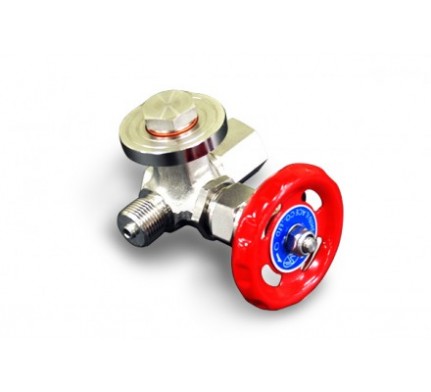

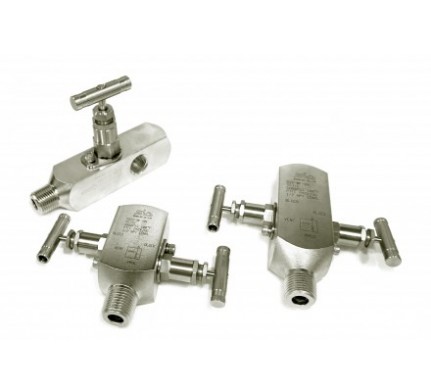

  • SGV Series Gauage Valves

    SGV Series Gauage Valves

    • SIZE :
    • Male Female Thread
      1/4” ~ 1”( NPT, PT, PF )
    • APPLICATIONS :
    • Pressure & Differential
      Pressure Instrumentation
    • MATERIAL :
    • 316L / 1valves, 2valves, 3valves,
      5valves instrument manifolds,
      Special Connection Avaiable
    • SPECIFICATIONS :
    • Maximum Working Pressure @ 100℉(38℃) :
      6000psi( 414bar )
      Working Temperature Range :
      -65˚F to 450˚F (-54˚C to 232˚C ) / PTFE packing
      Up to 1200˚F(649˚C) / Graphite packing
    Read More >
  • 6,000 PSI Square CNG Ball Valve SPBV Series

    6,000 PSI Square CNG Ball Valve SPBV Series

    • SIZE :
    • I-LOK 1/8 to 1” in OD/ 3mm to 25mm,
      Male Female Thread ( NPT, PT, PF )
    • APPLICATIONS :
    • High Pressure Instrument system,
      Hydraulic system
    • MATERIAL :
    • 316L, Brass, Steel /
      Blow out proof design with internally
      loaded stem , 2-way or 3-way designs
    • SPECIFICATIONS :
    • Maximum Working Pressure @ 100℉(38℃) :
      500bar( 414bar )
      Working Temperature Range :
      -22˚F to 265˚F ( -30˚C to 130˚C )
    Read More >

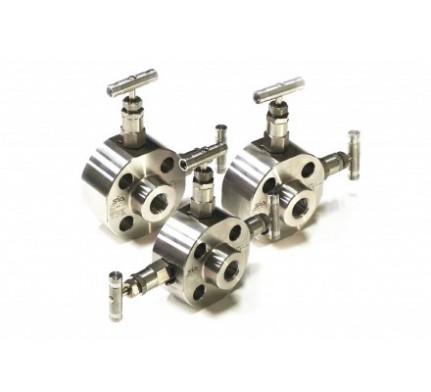

  • Mono Flange Valves SMFV Series

    Mono Flange Valves SMFV Series

    • SIZE :
    • ANSI B16.5 Flanged Inlet
      connections 1/2” to 2” sizes
    • APPLICATIONS :
    • Instrumentation , Fluid Control,
      Compressed Air
    • Material / Features :
    • 316L/ 1valves, 2valves, 3valves, instrument
      manifolds, Special Connection Avaiable
    • SPECIFICATIONS :
    • Maximum Working Pressure @ 100℉(38℃) :
      6000psi( 414bar )
      Working Temperature Range :
      -65˚F to 450˚F (-54˚C to 232˚C ) / PTFE packing
      Up to 1200˚F(649˚C) / Graphite packing

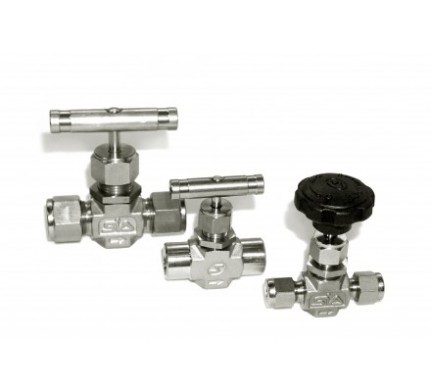

  • SNV 3C Series - Way Test Valve

    SNV 3C Series - Way Test Valve

    • SIZE :
    • I-LOK & Bite Type 1/8 to 1” in OD/ 3mm to 25mm,
      Male Female Thread ( NPT, PT, PF )
    • APPLICATIONS :
    • Instrument isolation, General
      purpose gas, Test valve
    • Material / Features :
    • 316L, Brass, Steel / 3-Way and angle patterns,
      Panel Mount Type, Test Cock Type
    • SPECIFICATIONS :
    • Maximum Working Pressure @ 100℉(38℃) :
      5000psi ( 345bar )
      Working Temperature Range :
      -65˚F to 450˚F ( -54˚C to 232˚C )

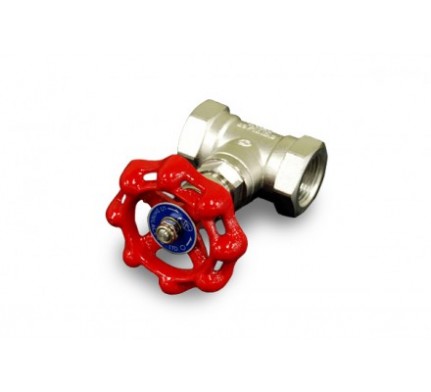

  • SLGV Series Low Pressure Globe Valve

    SLGV Series Low Pressure Globe Valve

    • SIZE :
    • I-LOK 1/8 to 1” in OD/ 3mm to 25mm,
      Male Female Thread ( NPT, PT, PF )
    • APPLICATIONS :
    • Instrumentation , Fluid Control,
      Compressed Air
    • Material / Features :
    • 316L, Brass / Lever, Butterfly,
      Bar Handles
    • SPECIFICATIONS :
    • Maximum Working Pressure :
      1000psi( 69bar )@70˚F( 21˚C )

      Temperature Working Range :
      0˚F to 450˚F ( -17˚C to 232˚C )

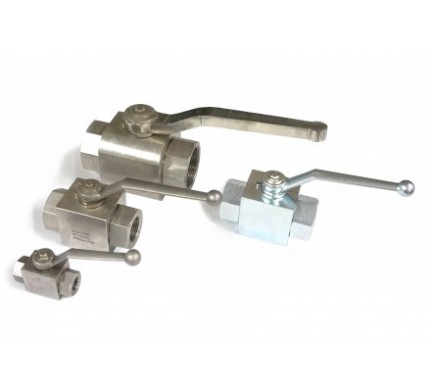

  • SDBV Series 6,000 PSI Din Type Ball Valve

    SDBV Series 6,000 PSI Din Type Ball Valve

    • SIZE :
    • Thread (PT, PF, NPT, UNF),
      Din 2353 Tube Size O.D
    • APPLICATIONS :
    • Hydraulic lines
    • Material / Features :
    • 316L, Brass, Steel / Quarter Turn Actuation ,
      Compact Design, Large Orifice
    • SPECIFICATIONS :
    • Maximum Working Pressure @ 100℉( 38℃ ) :
      1000psi( 689bar )

      Working Temperature Range :
      -320˚F to 1000˚F (-198˚C to 537˚C )
  • SUV Series Union Bonnet Needle Valves

    SUV Series Union Bonnet Needle Valves

    • SIZE :
    • I-LOK 1/8 to 1” in OD/ 3mm to 25mm,
      Male Female Thread ( NPT, PT, PF )
    • APPLICATIONS :
    • High temperature and pressure
      Instrument, Power Plant.
    • Material / Features :
    • 316L, Titanuim / Straight and
      angle patterns, Pannel Mount Type
    • SPECIFICATIONS :
    • Maximum Working Pressure @ 100℉( 38℃ ) :
      6000psi( 414bar )

      Working Temperature Range :
      -65˚F to 450˚F (-54˚C to 232˚C ) / PTFE packing
      Up to 1200˚F(649˚C) / Graphite packing

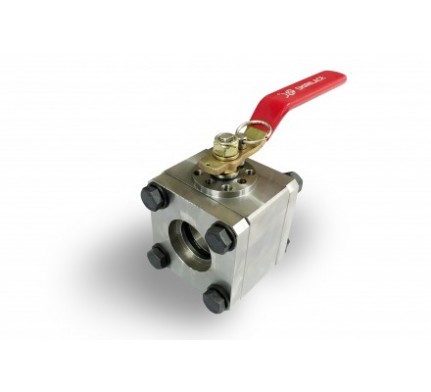

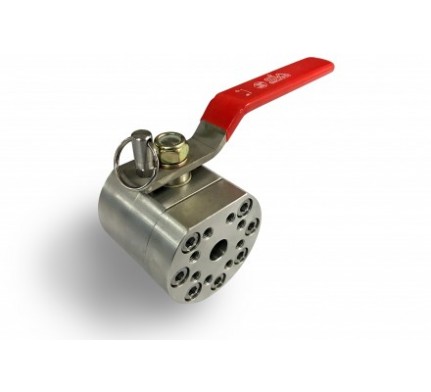

  • Sae Flange Ball Valves SFBV Series

    Sae Flange Ball Valves SFBV Series

    • SIZE :
    • SAE J518 & ISO 6164
      Flanged edn connection
    • APPLICATIONS :
    • Hydraulic System
    • Material / Features :
    • 316L, Steel / Anti-vibration
      Handle, Locking Device
    • SPECIFICATIONS :
    • Maximum Working Pressure @ 100℉( 38℃ ) :
      Up to 6000psi( 414bar )

      Working Temperature Range :
      -4˚F to 210˚F (-20˚C to 100˚C )

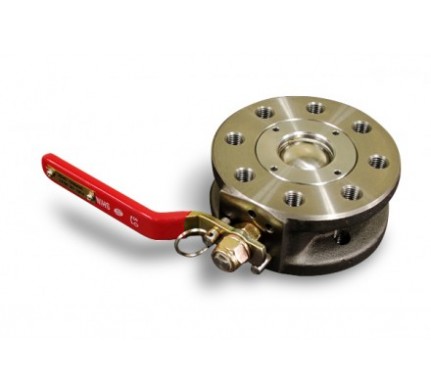

  • SFCBV Series Fire Tested Compact Ball Valves

    SFCBV Series Fire Tested Compact Ball Valves

    • SIZE :
    • ( 5K ~ 20K ) 20A ~ 100A
    • APPLICATIONS :
    • Compressed Air,
      Lubrication, Hydraulic
    • Material / Features :
    • FCD450, 316L / Easy Structure, Anti-vibration
      Fire Tested By Lloyd Register
    • SPECIFICATIONS :
    • Maximum Working Pressure @ 100℉( 38℃ ) :
      5kgf/Cm2 ~ 20kgf/Cm2 ( 71.1psi ~ 284.4psi )

      Temperature Range :
      -68°F to 212°F ( -28°C to 100°C )
  • SECV Series Compact Ball Valve

    SECV Series Compact Ball Valve

    • SIZE :
    • ( 5K ~ 20K ) 20A ~ 100A
    • APPLICATIONS :
    • Compressed Air,
      Lubrication, Hydraulic
    • Material / Features :
    • FCD450, 316L / Easy Structure,
      Anti-vibration Handle
    • SPECIFICATIONS :
    • Maximum Working Pressure @ 100℉( 38℃ ) :
      5kgf/Cm2 ~ 20kgf/Cm2 ( 71.1psi ~ 284.4psi )

      Temperature Range :
      -68°F to 212°F ( -28°C to 100°C )
