파코하이텍은 유압 호스 조립 전문 제조업체입니다

상품 정렬

FITTINGS

Introducing FITTINGS products.

FITTINGS

FITTINGS 제품을 소개합니다.

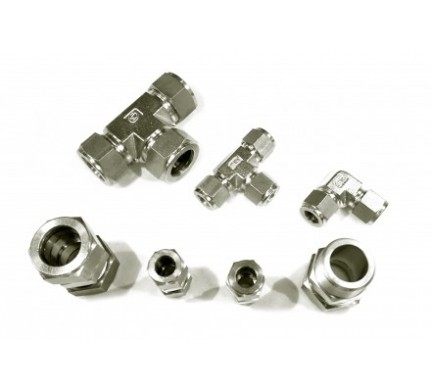

  • i-LOK Double Ferrule Tube Fittings

    i-LOK Double Ferrule Tube Fittings

    • SIZE :
    • 1/16 to 2 in OD , 2mm to 50mm OD
    • APPLICATIONS :
    • Instrumentation , LNG , CNG (Cryogenic),
      Harsh Enviroment (Tempreture, Pressure)
    • MATERIAL :
    • 316L, Brass, Steel, Alloy
    • SPECIFICATIONS :
    • Maximum Working Pressure :
      620.5 Bar (9,000 psi) @ 100℉(38℃)
      Temperature Working Range :
      -325℉(-198℃) to 1200℉(648℃)
    Read More >

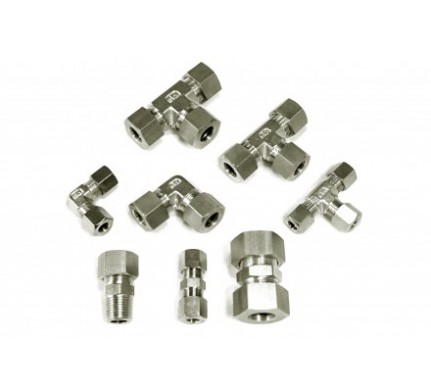

  • DIN2353 Bite Tube Fittings

    DIN2353 Bite Tube Fittings

    • SIZE :
    • 04LL ~ 12LL, 06L ~ 42L, 06S ~ 38S
    • APPLICATIONS :
    • Hydraulic, Compressed Air,
      Lubrication, Auto Motive.
    • MATERIAL :
    • 316L, Brass, Steel
    • SPECIFICATIONS :
    • Maximum Working Pressure @ 100℉(38℃) :
      LL - 100 bar, L - 315 bar S - 630 bar
      Working Temperature Range :
      Up to 800℉ (427℃)
    Read More >

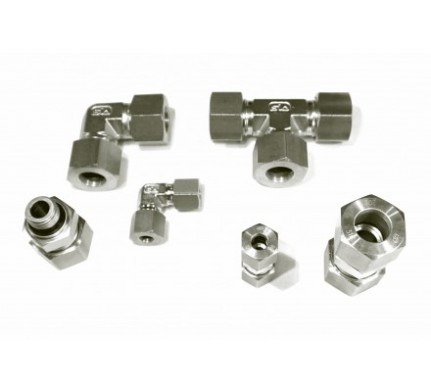

  • JIS & KS Bite Type Tube Fittings

    JIS & KS Bite Type Tube Fittings

    • SIZE :
    • Ø04 ~ Ø50 , 06A ~ 40A
    • APPLICATIONS :
    • Hydraulic, Compressed Air,
      Lubrication, Auto Motive.
    • MATERIAL :
    • 316L, Brass, Steel
    • SPECIFICATIONS :
    • Maximum Working Pressure @ 100℉(38℃) :
      500bar
      Working Temperature Range :
      400 °C (752 °F)
    Read More >

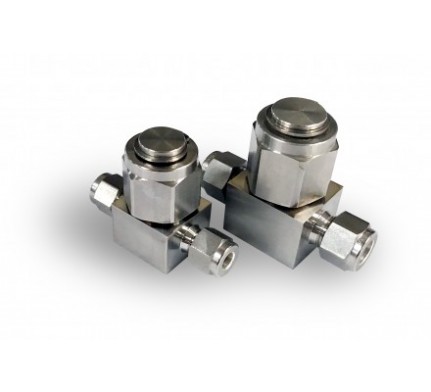

  • Filter

    Filter

    • SIZE :
    • I-LOK 1/8” ~ 1/2” 03M ~ 12M,
      Thread 1/8” ~ 1/2” (PT, NPT)
    • APPLICATIONS :
    • Gas / liquid filtration
    • MATERIAL :
    • 316L, Brass
    • SPECIFICATIONS :
    • Maximum Working Pressure @ 100℉(38℃) :
      3,000psi (206bar)
      Working Temperature Range :
      -20°F to 900°F (-28°C to 482)°C)
    Read More >
  • Pipe Welding Fittings

    Pipe Welding Fittings

    • SIZE :
    • Thread (PT, PF, NPT, UNF),
      Welding (Tube, Pipe Size)
    • APPLICATIONS :
    • Instrumantation, Piping,
      Lubrication, Hydraulic
    • MATERIAL :
    • 316L, Brass, Steel
    • SPECIFICATIONS :
    • Maximum Working Pressure @ 100℉(38℃) :
      1000psi(689bar)
      Working Temperature Range :
      -320˚F to 1000˚F (-198˚C to 537˚C )
    Read More >

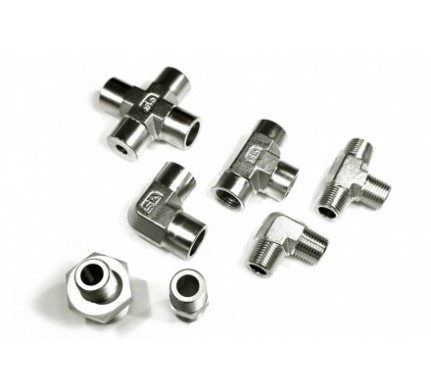

  • Pipe Thread Fittings

    Pipe Thread Fittings

    • SIZE :
    • Thread (PT, PF, NPT, UNF)
    • APPLICATIONS :
    • Instrumantation, Piping,
      Lubrication, Hydraulic
    • MATERIAL :
    • 316L, Brass, Steel
    • SPECIFICATIONS :
    • Maximum Working Pressure @ 100℉(38℃) :
      1000psi(689bar)
      Working Temperature Range :
      -320˚F to 1000˚F (-198˚C to 537˚C )
    Read More >
